Characterization of emerging electrical components

PLATFORM

components

caracterisationcomposants

ht components characterization

  • dV/dT measurements & switching losses for wide gap components:
    V max: 900 V (at 3.3 kV), I max: 10 A, T°C max: 250°C



scannerchampproche

near-field scanner

  • 6-axis robot
  • BF generator: 60MHz, 300MS/s
  • RF generator: 3.2GHz
  • power amplifier: 100kHz-1GHz / 30W
contactthermique

thermal contact bench

  • thermal contact test under environmental conditions
  • thermal camera: T°C max: 1500°C, bandwidth: 1kHz, resolution: 640x512 Pi
  • halogen lamps 600W
  • flash lamp 1500J

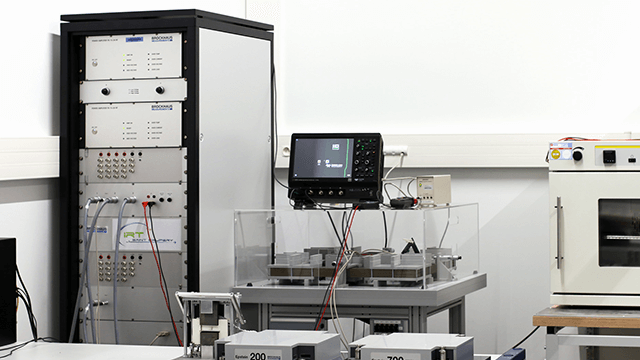

hysteresigraphe

hysteresigraph

  • primary power amplifier: l max: +/- 28A, P max: 1kW, bandwidth: 1MHz
  • standardized Epstein frames: IEC60404-2, 60404-10
  • thermal chamber: up to 300°C
